Understanding 60 Amp 220V Wire Size: Tips And Guidelines

What Size Electrical Wire, 60, 220V Brilliant Latest Wiring Diagram from tonetastic.info

If you're planning to upgrade your home electrical system or install a new circuit, you may be wondering what wire size you need for a 60 amp, 220 volt circuit. Choosing the right wire size is essential to ensure that your electrical system is safe, efficient, and reliable. In this article, we'll discuss everything you need to know about 60 amp 220V wire size, including tips and guidelines for selecting the right wire size for your project.

What is 60 Amp 220V Wire Size?

60 amp 220V wire size refers to the size of the wire that is suitable for a circuit that carries 60 amps of current at 220 volts. The wire size is determined by the ampacity, which is the maximum amount of electrical current that a wire can safely carry without overheating or causing a fire hazard. In general, larger wire sizes have higher ampacities and can carry more current without overheating.

Factors to Consider When Selecting Wire Size

When selecting wire size for a 60 amp, 220V circuit, there are several factors to consider, including:

Ampacity: As mentioned earlier, the ampacity of the wire is the most important factor to consider. The National Electrical Code (NEC) provides guidelines for selecting wire sizes based on the ampacity required for a specific circuit.
Length of the circuit: The length of the circuit affects the resistance of the wire, which can cause voltage drop and reduce the amount of current that the circuit can carry. Longer circuits require larger wire sizes to compensate for the increased resistance.
Type of wire: Different types of wire have different ampacities, so it's important to select the right type of wire for your project. For example, copper wire has a higher ampacity than aluminum wire of the same size.
Ambient temperature: High temperatures can reduce the ampacity of the wire, so it's important to consider the ambient temperature when selecting wire size.

Guidelines for Selecting 60 Amp 220V Wire Size

Here are some general guidelines for selecting the right wire size for a 60 amp, 220V circuit:

Use wire with an ampacity of at least 60 amps: The wire must be able to safely carry the current required by the circuit.

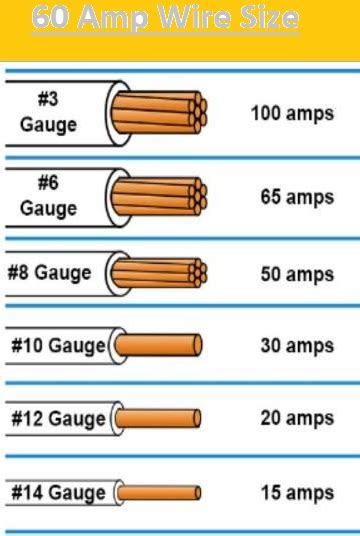

Use wire with a size of at least #6 AWG: The wire size must be large enough to minimize the risk of overheating and voltage drop.
Consider the length of the circuit: If the circuit is longer than 100 feet, use a larger wire size to compensate for the increased resistance.
Choose the right type of wire: Copper wire is the most common type of wire for residential applications and has a higher ampacity than aluminum wire.
Consider the ambient temperature: If the wire will be installed in a high-temperature environment, use wire with a higher ampacity to compensate for the reduced ampacity at high temperatures.

Conclusion

Selecting the right wire size is essential to ensure that your electrical system is safe, efficient, and reliable. When selecting wire size for a 60 amp, 220V circuit, consider the ampacity, length of the circuit, type of wire, and ambient temperature. Following these guidelines will help you choose the right wire size for your project and ensure that your electrical system meets the necessary safety standards.
